SS Multi Layer Blow Moulding Machine 450mm Mold Moving Stroke 2.88 Kw

SS Multi Layer Blow Moulding Machine 450mm Mold Moving Stroke 2.88 Kw

Introduction

Extrusion blow molding machine can help you to make the Max. Volume as 5Liter in the jerrycan. It’s widely used in 500ml~5000ml bottle. You can have different options in this 5Liter machine like single station, double station, single head, multi heads, view strip, single layer, multi-layers, auto-deflashing function and so on. We can make the most suitable configuration according to your requirement in you new project.

Extrusion Blow Molding Machine Features

1. Electronic control system: Japanese Mitsubishi PLC computer plus man-machine interface (Chinese or English) red paper, touch-screen operation. All process settings, changes, search, monitoring, fault diagnosis and other functions are achieved on the touch screen, no contact with the working principle, components and durable.

2. Hydraulic system: proportional pressure control, equipped with imported brand-name hydraulic components, stable and reliable.

3. Plasticizing system: efficient plasticizing mixing screw, plastic plastic to ensure adequate and uniform.

4. Speed control system: frequency control + alloy steel gear reducer, smooth speed, low noise, durable.

5. Opening and closing mode, mobile system: beam arm, three o’clock, the center of the mold clamping mode, to ensure long-term use. Clamping force balance, no deformation, and the use of translation mode body (ball linear guide), high precision, less resistance, faster..

6. Blowing needle holder: the overall angle-type blowing needle holder, stable and not shift, to ensure that products cut smooth.

Components list

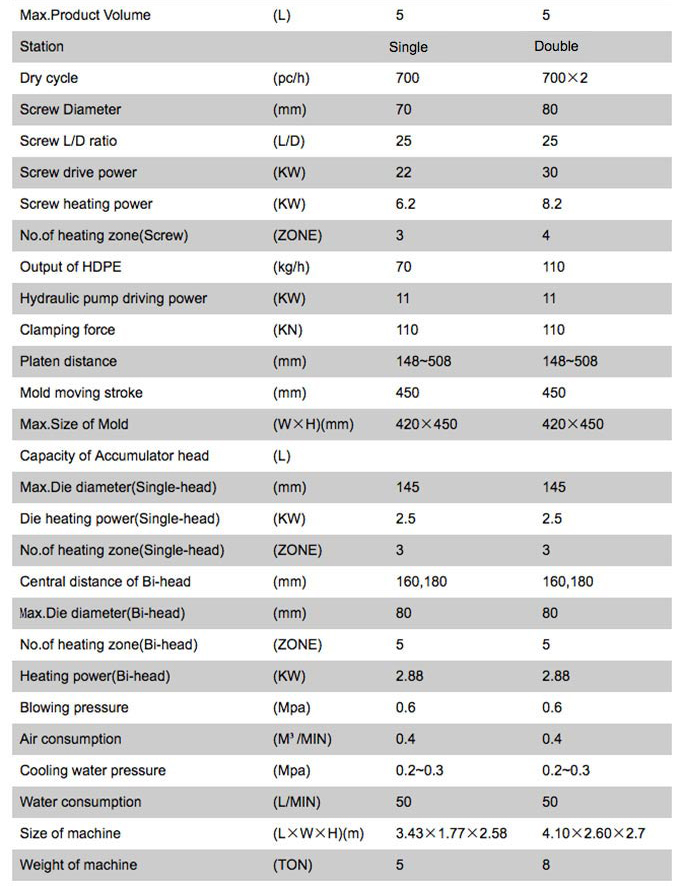

Parameter

jerry can blow molding machine

multi layer blow moulding machine

SS Multi Layer Blow Moulding Machine 450mm Mold Moving Stroke 2.88 Kw Images
