PP HDPE Blow Molding Machine View Stripe Line 5L Stackable Jerry Can Production

Name: PP HDPE Blow Molding Machine View Stripe Line 5L Stackable Jerry Can Production
Brand: U TECH
Price: 1 USD

Brand Name : U TECH

Model Number : BST-5

Certification : CE SGS ISO

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Set/Sets

Price : discussible

Payment Terms : L/C, T/T

Supply Ability : 15 Set/Sets per Month

Delivery Time : 45 work days

Packaging Details : Wooden Case for 5L-10L-15L-20L HDPE Plastic Jerry Can Tank Container Drum Extrusion Blowing Mould /Blow Molding Machine

Material : Stainless Steel

Control System : PLC+touch Screen

Warranty : 2 Years

Screw Diameter : 80mm

Average Power Consumption : 42KW

Double Head Central Distance : 230mm

Clamping Force : 110KN

Plasticizing Capacity : 110kg/h

Max Mould Size : 630x385mm

Contact Now

HDPE Bottles Jerry Can Blow Molding Machine View Stripe Line 5L Stackable Jerry Can Making Machine

Introduction

This model adopts fixed mould open-closing system and accumulator die.This model is automatic process with low noise, saving energy, high efficiency, safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts(water box, oil box, air-condition pipe, aoto tail), toys (wheel, hollow autobike, basketball stands, baby castle), tool box, vacuum cleaner pipe, chairs for bus and gymnasium,etc.This model can produce max 5L hollow plastic product.

Specifications:

Built with safety devices to provide maximum protection for the machine operator
High plasticizing capacity extrusion screw is designed to handle material variations
Plasticizing screw and barrel are precision machined from special nitrogen treated steel
Water cooling technology controls feed zone temperature
Chiller circulated hydraulically controlled blow-pin
Pneumatically operated automatic deflashing unit.
When requiring both functions in a single machine, purchase the machine for PVC application and order the additional parts (screw and die head ) for conversion to PE application

Parameter

SPECIFICATIONS & TECHNICAL DATA
Extrusion Unit	Screw Diameter	mm	80
	Plasticizing Capacity	Kg/hour	110
	Temperature Control Zone	No.	5
Continuous Head	Single Head Max Die Diameter	mm	230
	Double Head Central Distance	mm	230
	Four Head Central Distance	mm	120
	Six Head Central Distance	mm	85
Clamping Unit	Clamping Force	KN	110
	Platen Size	mm	580x420
	Opening Distance	mm	150~450
	Moving Distance	mm	720
	Max Mould Size	mm	630x385
Driving System	Extrusion Motor Power	KW	30
	Pump Motor Power	KW	15
	Machine Total Power	KW	72
	Average Power Consumption	KW	42

PP HDPE Blow Molding Machine View Stripe Line 5L Stackable Jerry Can Production

Product Tags:

hdpe bottle manufacturing machine

hdpe drum making machine

Buy cheap PP HDPE Blow Molding Machine View Stripe Line 5L Stackable Jerry Can Production product

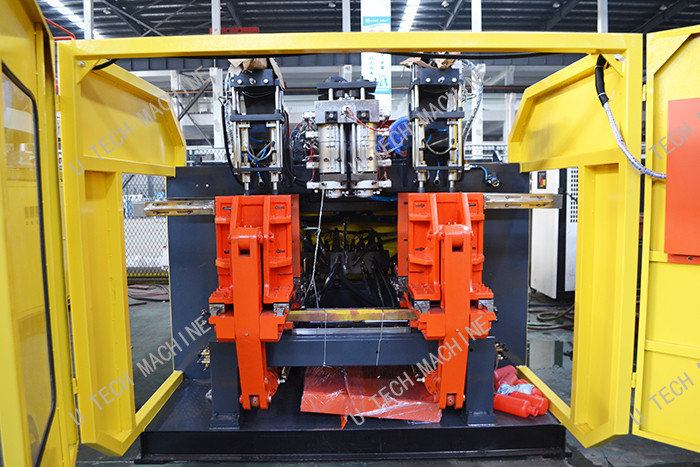

PP HDPE Blow Molding Machine View Stripe Line 5L Stackable Jerry Can Production Images
