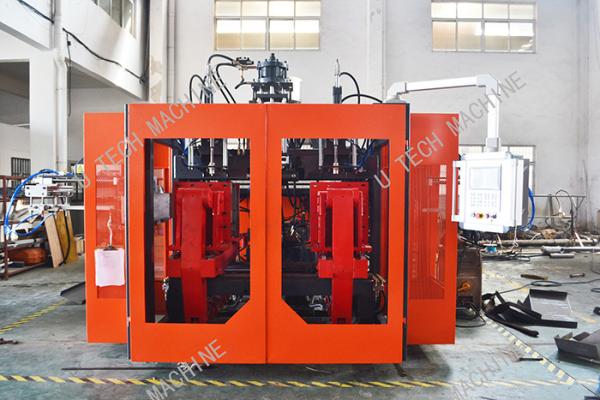

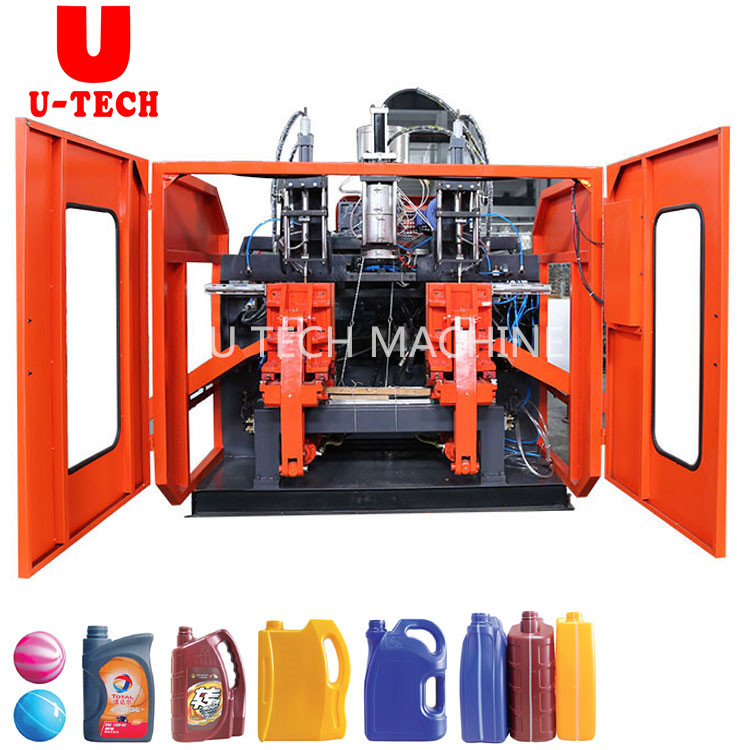

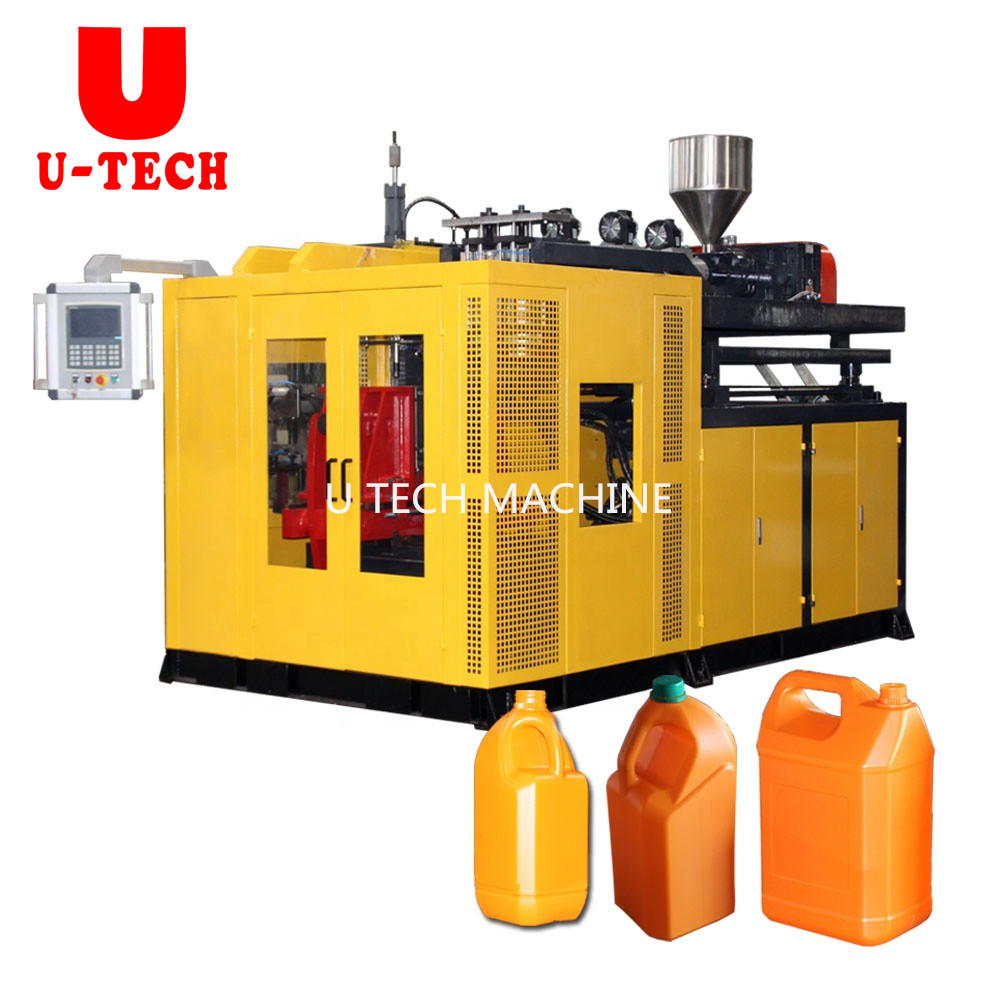

Automatic 5L Jerrycan Double Station HDPE Extrusion Blow Molding Machine Price
Introduction
Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents, etc with material of PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
Feature:
1. Original FESTO air cylinder.
2. Minimize your initial investment by starting small.
3. Add additional systems economically as your business grows.
4. Bottles of different sizes can be produced simultaneously to meet your exact requirements.
5. Change over from one size to another can be completed simply and quickly.
6. The tooling costs (molds) are low since the design of the system is simple.
7. Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design.
8. Maintenance costs are kept to a minimum and highly-trained personnel are not required.
Parameters
Category |
Item |
Unit |
BST70 |
BST80 |
BST90 |
| Extruder Unit |
Screw diameter |
mm |
70 |
80 |
90 |
Screw L/D ratio |
L/D |
25:1 |
25:1 |
25:1 |
Plasticising capacity |
kg/hr |
80 |
100 |
120 |
| number of heating zone |
kw |
10 |
12.5 |
12.5 |
extruder driving power |
zone |
4 |
5 | |
| extruder heating power |
Kw |
15 |
22 |
30 |
| Die head | number of heating zone |
zone |
3 |
3 |
4 |
| power of die heating |
kw |
4 |
6 |
8 |
max die-pin diameter |
mm |
250 |
350 |
400 |
| accumulator capacity |
kg |
3 |
4 |
6 |
| specifications | Max container capacity |
L |
20 |
30 |
50 |
| machine dimension |
M |
4*2.6*2.7 |
5*3.1*3.2 |
5*3.1*3.9 |
| total weight |
tom |
4.5 |
7 |
9 |
Clamping Unit
| clamping force |
kn |
160 |
300 |
400 |
| platen opening stroke |
mm |
250-800 |
350-1050 |
350-1250 |
| max mould size |
mm |
520*600 |
700*1000 |
900*1200 |
| mould thickness |
mm |
260-400 |
360-500 |
360-600 |
Power
| Oil pump motor |
kw |
7.5 |
11 |
11 |
| total power |
kw |
40 |
63 |
70 |
| fan power for screw |
kw |
0.72 |
0.72 |
0.72 |
| air pressure |
mpa |
0.7 |
0.7 |
0.7 |
| air consumption | m 3 /min |
0.9 |
0.9 |
0.9 |
| average energy consumption |
kw |
20 |
28 |
35 |
Components list
COMPONENTS NAME |
BRAND |
ORIGIN |
PLC |
MITSUBISHI |
Japan |
Operation screen |
SIMENS |
Germany |
Parison control system |
MOOG |
Japan |
Inverter |
MITSUBISHI |
Japan |
Pneumatic parts |
FESTO |
Germany |
Hydraulic pump and valve |
YUKEN |
Japan |
Transducer |
GEFRAN |
Italy |
Contactor |
SCHNEIDER |
France |
Relay |
SCHNEIDER |
France
|
