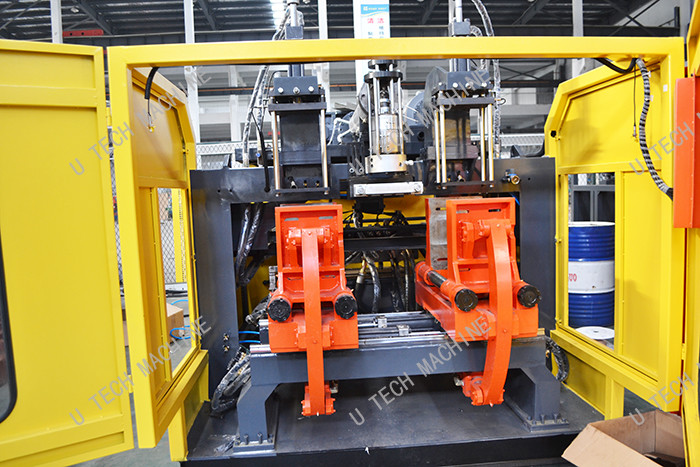

Plastic Jerry Can Making Machine 5L Plastic Drum HDPE Blow Moulding Machine
Introduction
The company introduced German technology combined with practical applications to develop a mature series of plasticsExtrusion Blow Molding Machine Named Rules,Specially designed for small and medium-sized enterprises to provide cost-effective high-capacity models, suitable for the production of 1-5L plastic products, can install single-die head or multi-die head, to meet the high-capacity production, can be used to produce single-layer, double-layer or three-layer Extruded products. All machines are equipped with advanced control systems that fully comply with CE regulations and are manufactured with high standards to ensure stable and efficient machines.
Feature
1. Original FESTO air cylinder.
2. Minimize your initial investment by starting small.
3. Add additional systems economically as your business grows.
4. Bottles of different sizes can be produced simultaneously to meet your exact requirements.
5. Change over from one size to another can be completed simply and quickly.
6. The tooling costs (molds) are low since the design of the system is simple.
7. Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design.
8.Maintenance costs are kept to a minimum and highly-trained personnel are not required
Parameter
SPECIFICATIONS & TECHNICAL DATA |
| | Screw Diameter | mm | 80 |
| Plasticizing Capacity | Kg/hour | 110 |
| Temperature Control Zone | No. | 5 |
| | Single Head Max Die Diameter | mm | 230 |
| Double Head Central Distance | mm | 230 |
| Four Head Central Distance | mm | 120 |
| Six Head Central Distance | mm | 85 |
| | Clamping Force | KN | 110 |
| Platen Size | mm | 580x420 |
| Opening Distance | mm | 150~450 |
| Moving Distance | mm | 720 |
| Max Mould Size | mm | 630x385 |
| | Extrusion Motor Power | KW | 30 |
| Pump Motor Power | KW | 15 |
| Machine Total Power | KW | 72 |
| Average Power Consumption | KW | 42 |
